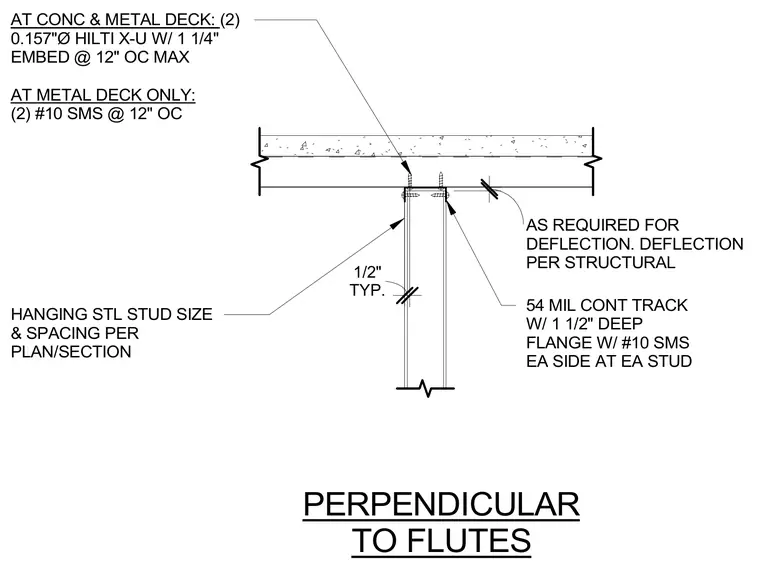

A continuous 54-mil track with one-and-a-half-inch deep flanges receives cold-formed steel studs sized and spaced per plan. At concrete over metal deck locations, the track is anchored using two zero-point-one-five-seven-inch diameter Hilti X-U fasteners with one-and-one-quarter-inch embedment at twelve inches on center maximum. At metal deck only conditions, the track is secured using two number-ten self-tapping sheet metal screws at twelve inches on center perpendicular to the flutes. A typical one-half-inch clearance is provided for deflection as required by structural engineering.
54 MIL CONT TRACK W/ 1 1/2" DEEP FLANGE W/ #10 SMS EA SIDE AT EA STUD AT CONC & METAL DECK: (2) 0.157"Ø HILTI X-U W/ 1 1/4" EMBED @ 12" OC MAX AT METAL DECK ONLY: (2) #10 SMS @ 12" OC PERPENDICULAR TO FLUTES HANGING STL STUD SIZE & SPACING PER PLAN/SECTION TYP. 1/2" AS REQUIRED FOR DEFLECTION. DEFLECTION PER STRUCTURAL .
