The roof assembly starts with a TPO roofing membrane over a one-half-inch cover board and R30 roof insulation. This layer sits above a metal deck supported by six-inch metal framing.

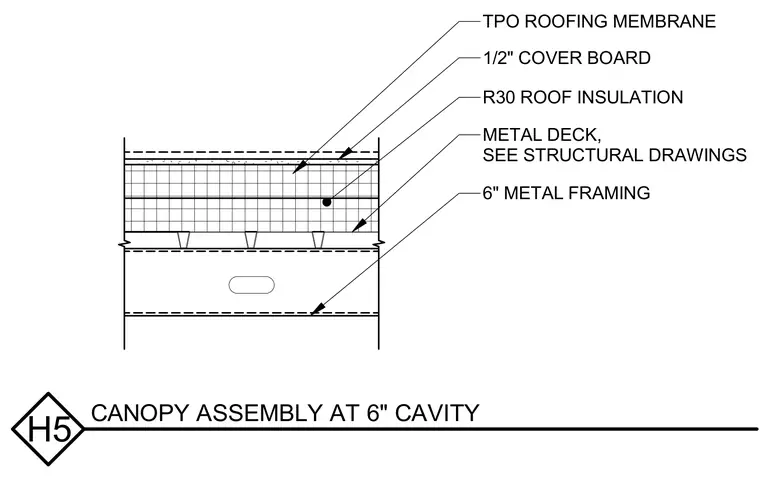

H5 CANOPY ASSEMBLY AT 6" CAVITY TPO ROOFING MEMBRANE R30 ROOF INSULATION METAL DECK, SEE STRUCTURAL DRAWINGS 1/2" COVER BOARD 6" METAL FRAMING
