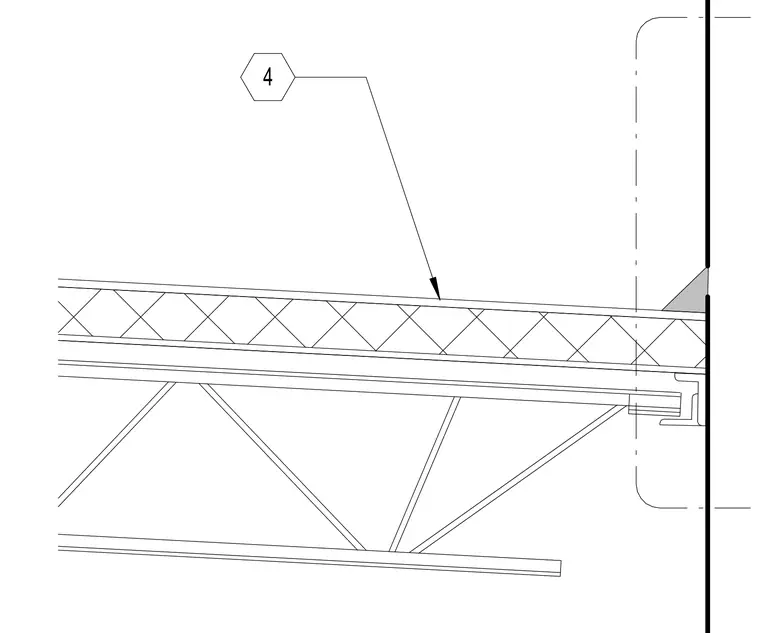

An open web steel joist frames into a vertical wall assembly, bearing on a runner track with an integrated suspension clip. The top chord extends to meet the vertical wall plane, sealed with a triangular sealant bead at the interface. A detail reference hexagon marked four points to the top chord member.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
