Steel Bridge Cap Connection at Column Grid

Materials

Steel

Elements

Columns Beams

Connections

Welded Connection Bolted Connection

About this detail

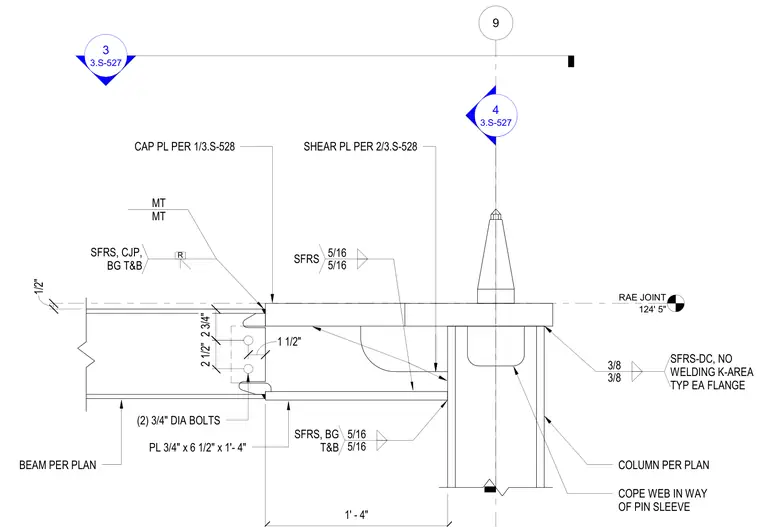

A structural steel bridge cap beam connects to a supporting column per plan, featuring a three-quarter-inch by six-and-a-half-inch by one-foot-four-inch plate welded with five-sixteenth-inch fillet welds. The beam web is coped to clear the pin sleeve, leaving the k-area unwelded with three-eighth-inch welds. A shear plate is welded with five-sixteenth-inch fillet welds, and the connection utilizes two three-quarter-inch diameter bolts. A cap plate per plan is welded with complete joint penetration welds, backed top and bottom, and finished with magnetic particle testing.
