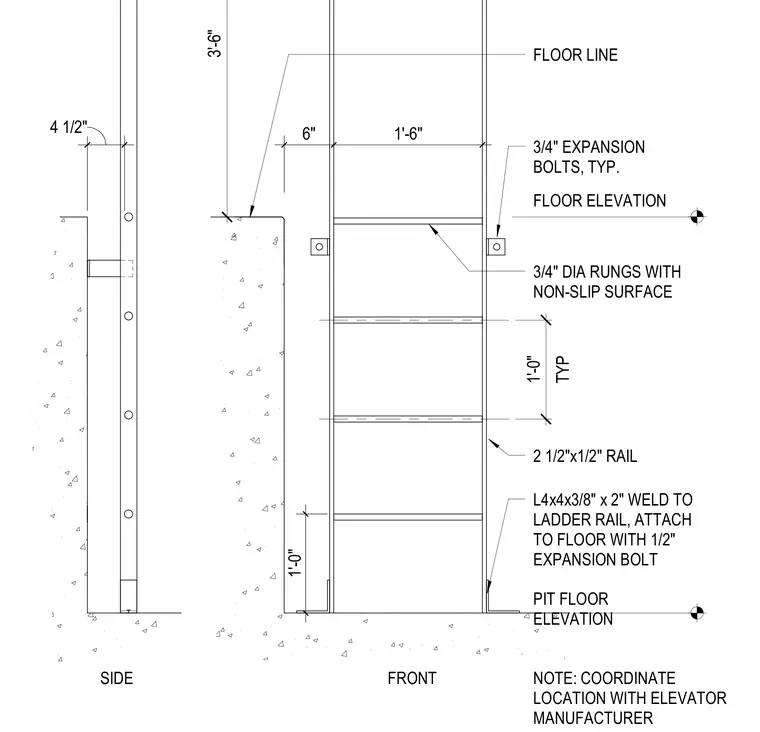

This elevator ladder assembly features 2 1/2-inch by 1/2-inch rail sides fitted with three-quarter-inch diameter rungs featuring a non-slip surface spaced at one foot typically. The ladder attaches to the floor using an L4x4x3/8 by 2-inch angle welded to the ladder rail and secured with a half-inch expansion bolt. Additional three-quarter-inch expansion bolts anchor the ladder side rails to the concrete elevator pit wall. Location coordination with the elevator manufacturer is required.
4 1/2" 6" 1'-6" FLOOR LINE 3/4" DIA RUNGS WITH NON-SLIP SURFACE 3/4" EXPANSION BOLTS, TYP. 2 1/2"x1/2" RAIL SIDE FRONT NOTE: COORDINATE LOCATION WITH ELEVATOR MANUFACTURER 1'-0" L4x4x3/8" x 2" WELD TO LADDER RAIL, ATTACH TO FLOOR WITH 1/2" EXPANSION BOLT FLOOR ELEVATION PIT FLOOR ELEVATION TYP 1'-0" 3'-6"
