Low Wall Reinforcement

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Floors / Slabs Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

HSS Connection Welded Connection Bolted Connection

About this detail

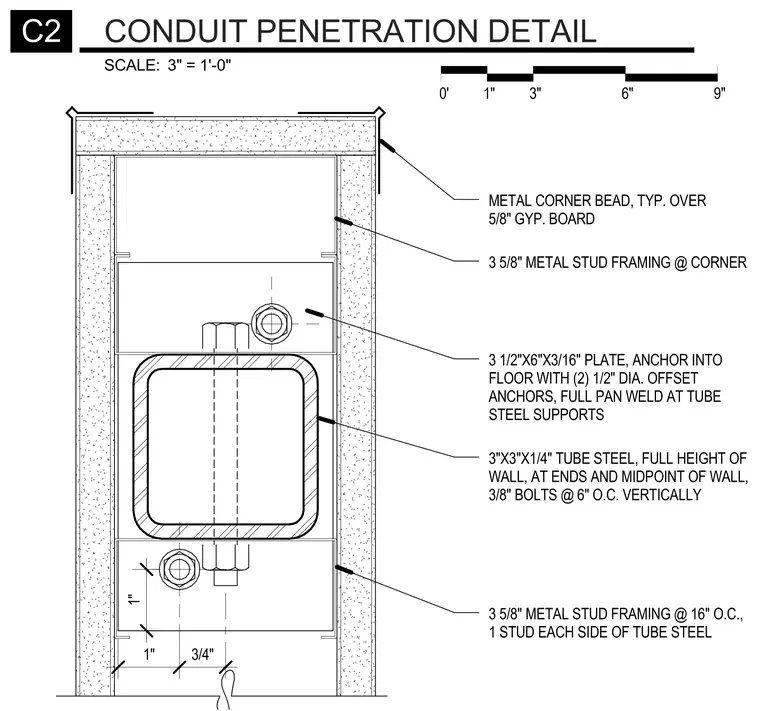

A low wall assembly is constructed with three and five-eighths inch metal stud framing spaced at sixteen inches on center, featuring one stud on each side of the internal structural tube. A three by three by one-quarter inch hollow structural section tube steel spans the full height of the wall at ends and midpoints, secured with three-eighths inch bolts at six inches on center vertically. A three and one-half by six by three-sixteenths inch plate is anchored into the floor with two one-half inch diameter offset anchors, utilizing a full pan weld at the tube steel supports. The wall surfaces are finished with five-eighths inch gypsum board and protected at the exterior corner with a metal corner bead.
