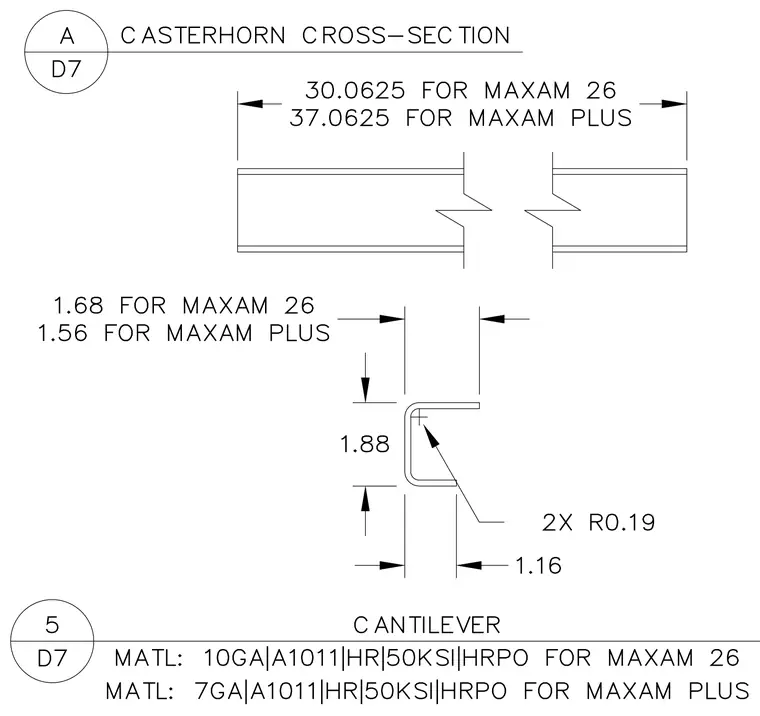

Profile dimensions and material specifications apply to a cantilever component utilized in Maxam 26 and Maxam Plus systems. The profile is formed from hot-rolled pickled and oiled steel conforming to ASTM A1011 with a 50 ksi yield strength. Material thickness is specified as 10-gauge for Maxam 26 and 7-gauge for Maxam Plus. Dimensional callouts define the overall widths, flange lengths, and internal radius curves across both system variants.
30.0625 FOR MAXAM 26 37.0625 FOR MAXAM PLUS 1.88 2X R0.19 1.16 1.68 FOR MAXAM 26 1.56 FOR MAXAM PLUS CASTERHORN CROSS-SECTION A D7 CANTILEVER 5 D7 MATL: 10GA|A1011|HR|50KSI|HRPO FOR MAXAM 26 MATL: 7GA|A1011|HR|50KSI|HRPO FOR MAXAM PLUS
