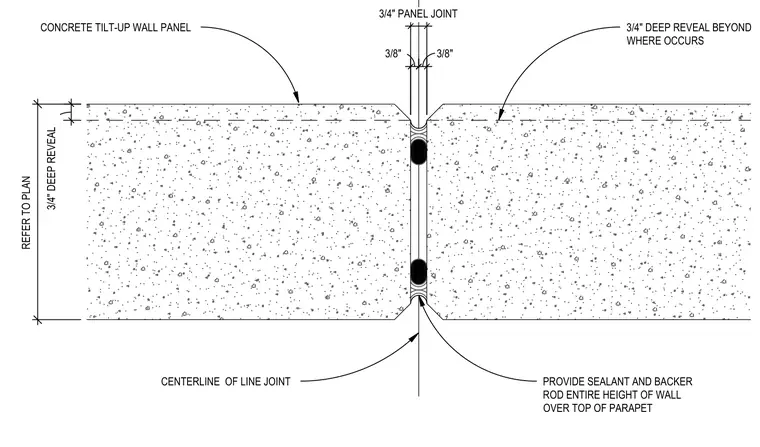

Two adjacent concrete tilt-up wall panels form a vertical three-quarter-inch joint filled with backer rods and sealant running the entire height of the wall and continuing over the top of the parapet. A three-quarter-inch deep reveal is incorporated into the panel edges along the joint line, with additional reveals located per the architectural plans.
3/8" 3/8" 3/4" PANEL JOINT PROVIDE SEALANT AND BACKER ROD ENTIRE HEIGHT OF WALL OVER TOP OF PARAPET CENTERLINE OF LINE JOINT 3/4" DEEP REVEAL BEYOND WHERE OCCURS CONCRETE TILT-UP WALL PANEL REFER TO PLAN 3/4" DEEP REVEAL
