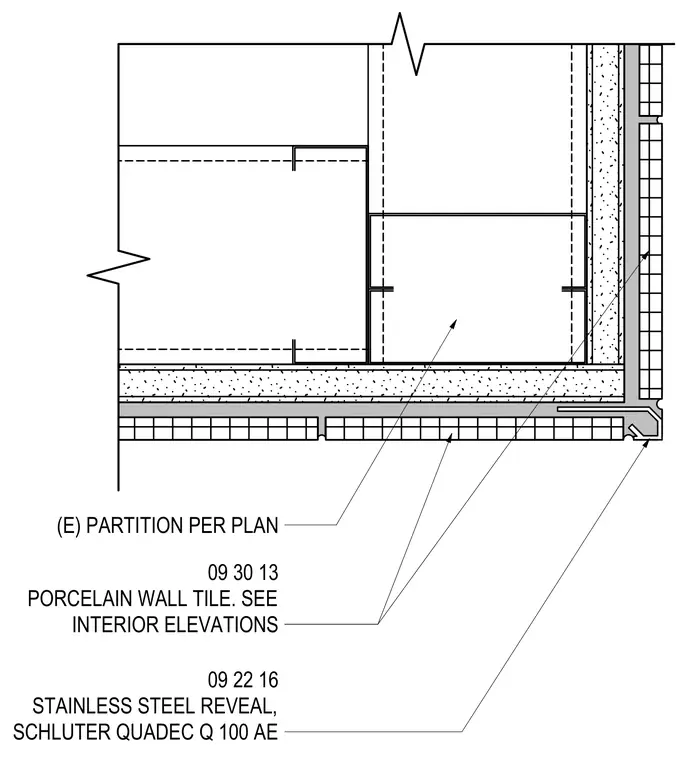

An existing partition per plan is finished with porcelain wall tile over the substrate. A stainless steel reveal featuring a Schluter Quadec Q 100 AE profile finishes the outside corner.
(E) PARTITION PER PLAN 09 30 13 PORCELAIN WALL TILE. SEE INTERIOR ELEVATIONS 09 22 16 STAINLESS STEEL REVEAL, SCHLUTER QUADEC Q 100 AE
