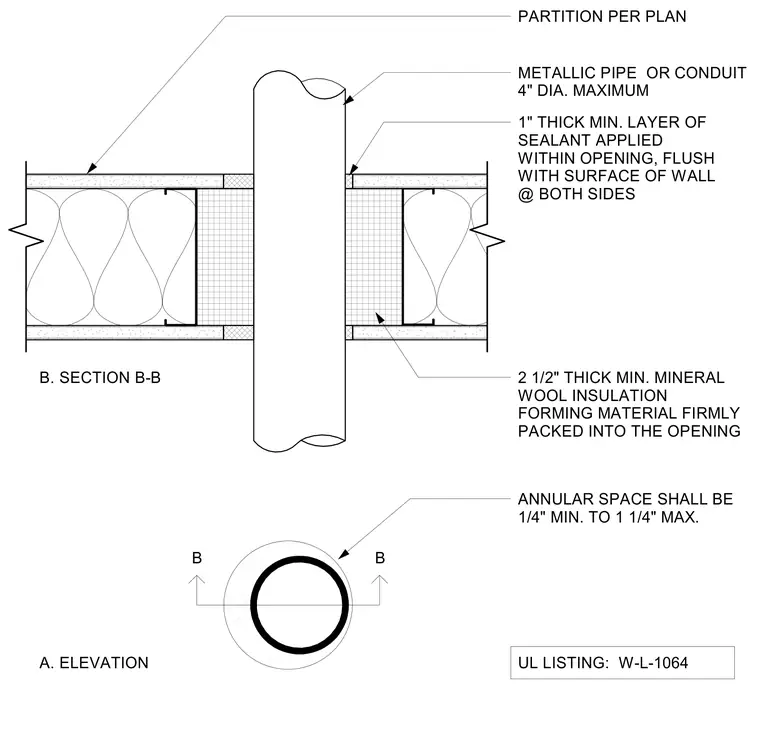

A metallic pipe or conduit up to four inches in diameter penetrates a partition per plan with an annular space ranging from one-quarter inch minimum to one and one-quarter inches maximum. Two and one-half inch thick minimum mineral wool insulation forming material is firmly packed into the opening. A one-inch thick minimum layer of sealant is applied within the opening, flush with the surface of the wall at both sides. The assembly complies with UL listing W-L-1064.
1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES 2 1/2" THICK MIN. MINERAL WOOL INSULATION FORMING MATERIAL FIRMLY PACKED INTO THE OPENING UL LISTING: W-L-1064 B B ANNULAR SPACE SHALL BE 1/4" MIN. TO 1 1/4" MAX. A. ELEVATION METALLIC PIPE OR CONDUIT 4" DIA. MAXIMUM PARTITION PER PLAN B. SECTION B-B
