Architectural · A-ZW8PF

Section - Xtend Mesh Guardrail

Elements

About this detail

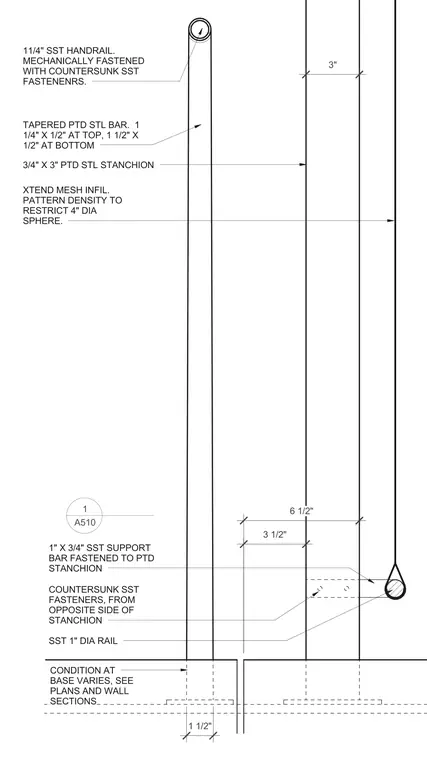

The assembly features a one-and-one-quarter-inch stainless steel handrail mechanically fastened with countersunk stainless steel fasteners. A tapered painted steel bar measuring one-and-one-quarter-inch by one-half-inch at the top and one-and-one-half-inch by one-half-inch at the bottom connects to a three-quarter-inch by three-inch painted steel stanchion. Xtend mesh infill provides a pattern density restricting a four-inch diameter sphere. A one-inch diameter stainless steel rail is supported by a one-inch by three-quarter-inch stainless steel support bar fastened to the painted stanchion with countersunk stainless steel fasteners from the opposite side. The base condition varies and should be coordinated with plans and wall sections.
