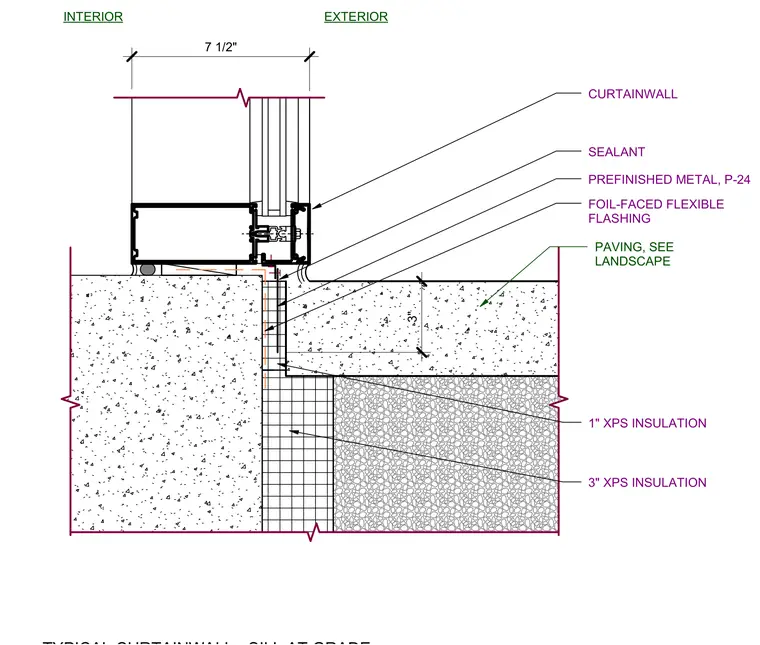

This curtainwall sill assembly at grade transitions from a prefinished metal curtainwall frame to a concrete foundation wall with a seven and a half inch overall dimension. Sealant and prefinished metal P-24 flashing tie the sill to a foil-faced flexible flashing membrane that manages exterior moisture above the grade line. Below grade, one-inch and three-inch extruded polystyrene insulation panels protect the assembly adjacent to exterior paving sized per landscape drawings.
INTERIOR EXTERIOR 3" SEALANT CURTAINWALL PREFINISHED METAL, P-24 FOIL-FACED FLEXIBLE FLASHING PAVING, SEE LANDSCAPE 1" XPS INSULATION 3" XPS INSULATION 7 1/2"
