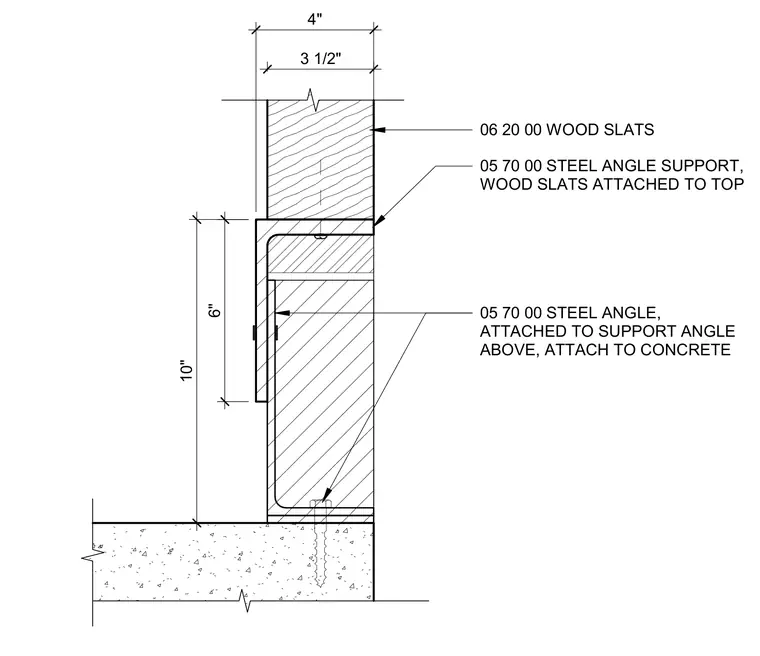

Wood slats are attached to the top of a steel angle support measuring 3 1/2 inches by 4 inches. The steel angle support sits on a vertical steel angle measuring 6 inches by 10 inches, which is attached to the support angle above and anchored to the concrete substrate below using a concrete anchor.
10" 3 1/2" 6" 4" 05 70 00 STEEL ANGLE, ATTACHED TO SUPPORT ANGLE ABOVE, ATTACH TO CONCRETE 06 20 00 WOOD SLATS 05 70 00 STEEL ANGLE SUPPORT, WOOD SLATS ATTACHED TO TOP
