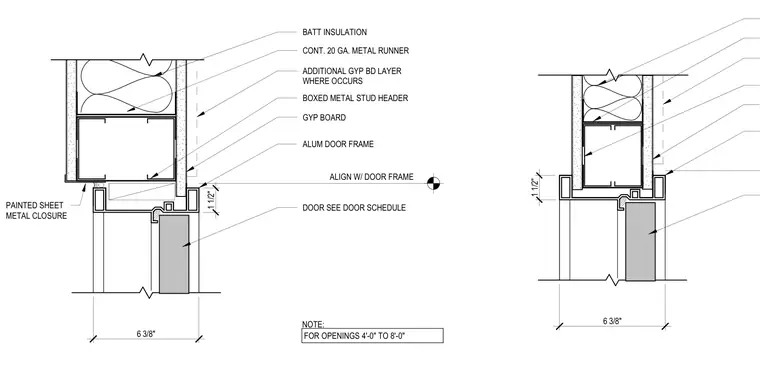

An aluminum door frame sits below a boxed metal stud header and continuous twenty gauge metal runner within a gypsum board partition. Batt insulation fills the wall cavity above the header assembly, with an additional gypsum board layer included where required. A painted sheet metal closure finishes the head condition, and the door aligns with the aluminum frame. For openings four feet to eight feet wide, the framing adjusts per the specified note.
6 3/8" 1 1/2" 6 3/8" CONT. 20 GA. METAL RUNNER BATT INSULATION ADDITIONAL GYP BD LAYER WHERE OCCURS BOXED METAL STUD HEADER GYP BOARD ALUM DOOR FRAME DOOR SEE DOOR SCHEDULE NOTE: FOR OPENINGS 4'-0" TO 8'-0" ALIGN W/ DOOR FRAME PAINTED SHEET METAL CLOSURE 1 1/2"
