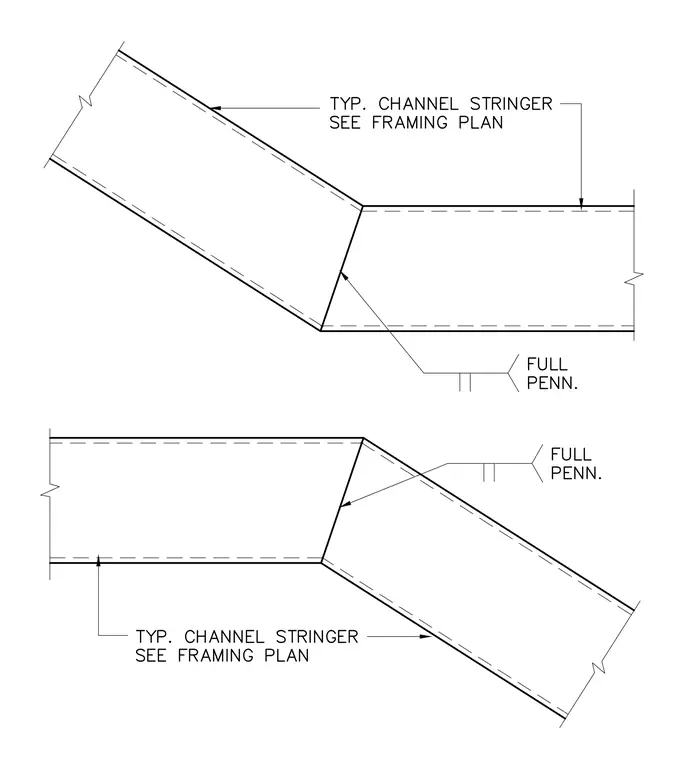

Two steel channel stringers meet at an angled miter joint as specified on the framing plan. The mitered connection is fully welded using a full penetration weld along the abutting steel flanges and web. Typical channel stringer sizes and layouts follow the structural framing plan.
