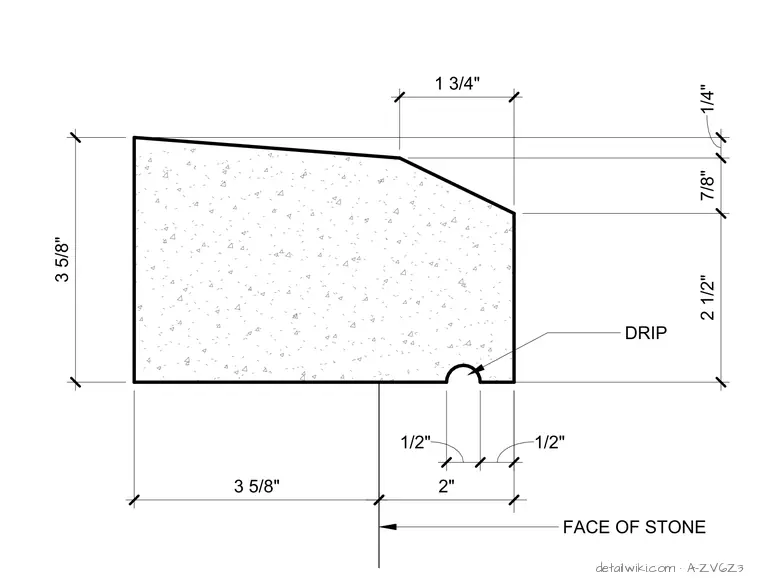

This precast concrete sill profile features a total height of 3 5/8 inches with a sloped top surface that transitions over a 1 3/4 inch horizontal run. The profile includes a 1/4 inch vertical drop at the top edge, followed by a 7/8 inch sloped segment and a 2 1/2 inch vertical face. A semi-circular drip groove is located on the underside, positioned 2 inches from the face of the stone, with a 1/2 inch radius.
