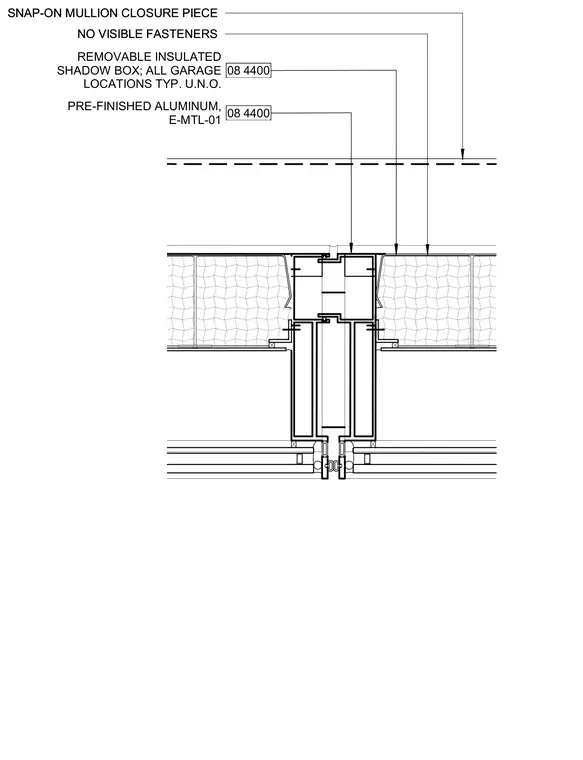

This architectural detail shows an aluminum garage screen mullion assembly featuring a pre-finished aluminum snap-on mullion closure piece designed with no visible fasteners. A removable insulated shadow box is installed at all garage locations typical unless noted otherwise, paired with pre-finished aluminum designated as material E-MTL-01.
08 4400 REMOVABLE INSULATED SHADOW BOX; ALL GARAGE LOCATIONS TYP. U.N.O. NO VISIBLE FASTENERS 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 SNAP-ON MULLION CLOSURE PIECE NO VISIBLE FASTENERS SNAP-ON MULLION CLOSURE PIECE
