Fully Recessed Fire Extinguisher Cabinet in Partition Wall

Materials

Elements

Partitions Insulation Millwork / Casework Roof / Floor Openings

About this detail

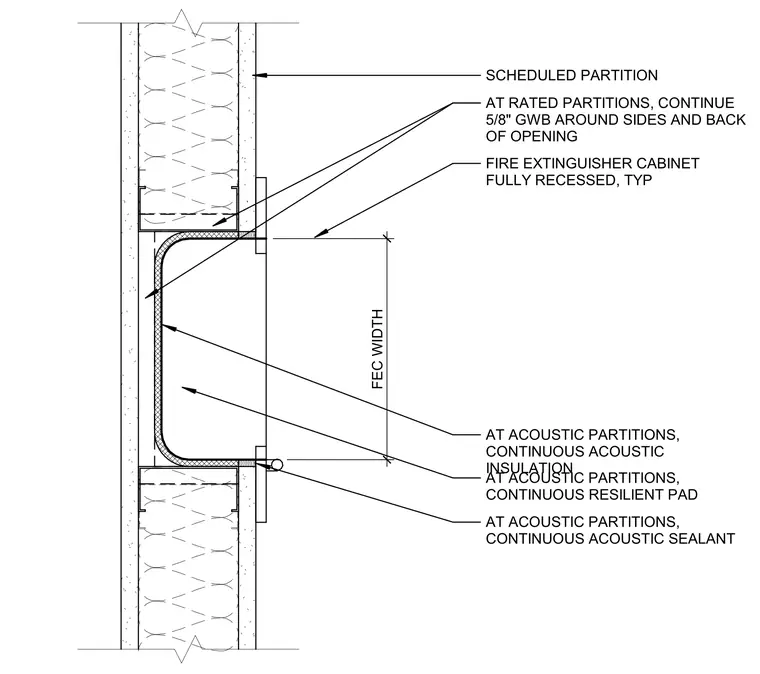

A fully recessed fire extinguisher cabinet is framed within a scheduled partition wall, maintaining a typical depth defined by the cabinet width. At rated partitions, five-eighths inch gypsum wallboard continues around the sides and back of the rough opening. At acoustic partitions, continuous acoustic insulation fills the cavity alongside a continuous resilient pad and continuous acoustic sealant applied at the frame interface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
