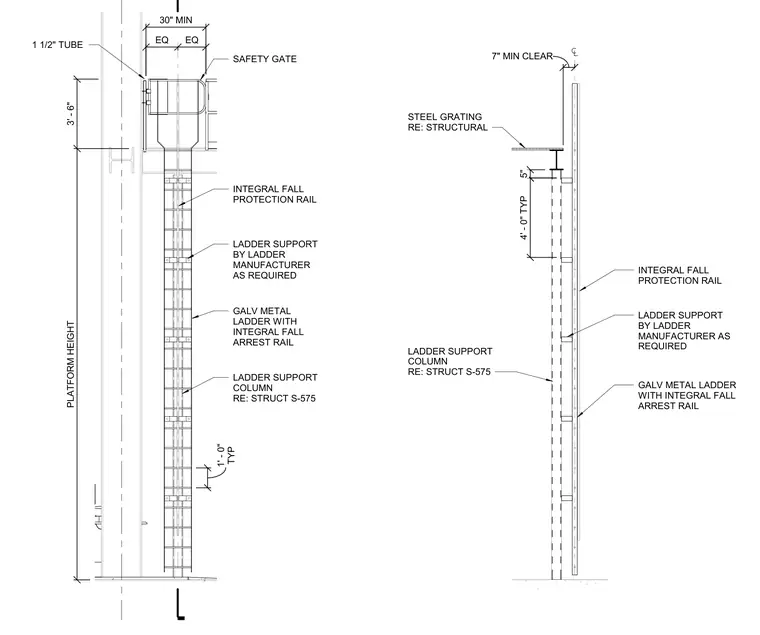

An industrial galvanized metal ladder features an integral fall arrest rail and a safety gate at the platform level. The ladder is secured to ladder support columns and supplemented by additional supports provided by the ladder manufacturer as required. Steel grating forms the platform surface, maintaining a minimum 7-inch clearance and a 30-inch minimum width with equal spacing at the gate. A 1 1/2-inch tube forms the safety gate assembly at a typical height of 3 feet 6 inches above the platform level. Ladder rungs are spaced at 1 foot 0 inches typical, with support brackets occurring at 4-foot intervals.
7" MIN CLEAR 4' - 0" TYP STEEL GRATING RE: STRUCTURAL LADDER SUPPORT BY LADDER MANUFACTURER AS REQUIRED LADDER SUPPORT COLUMN RE: STRUCT S-575 INTEGRAL FALL PROTECTION RAIL 5" GALV METAL LADDER WITH INTEGRAL FALL ARREST RAIL LADDER SUPPORT COLUMN RE: STRUCT S-575 GALV METAL LADDER WITH INTEGRAL FALL ARREST RAIL LADDER SUPPORT BY LADDER MANUFACTURER AS REQUIRED INTEGRAL FALL PROTECTION RAIL SAFETY GATE 1 1/2" TUBE TYP 1' - 0" PLATFORM HEIGHT 3' - 6" EQ EQ 30" MIN
