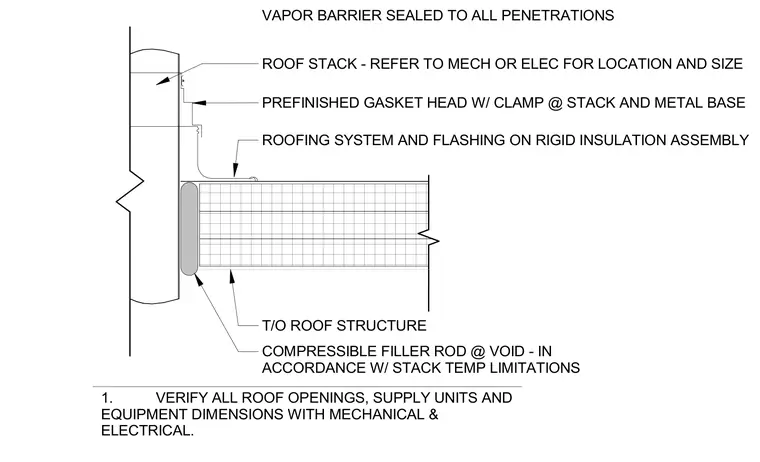

A roof stack penetrates the top of the roof structure with a prefinished gasket head and clamp securing the metal base. The roofing system and flashing extend over the rigid insulation assembly. A compressible filler rod seals the void in accordance with stack temperature limitations. A vapor barrier is sealed to all penetrations.
ROOF STACK - REFER TO MECH OR ELEC FOR LOCATION AND SIZE PREFINISHED GASKET HEAD W/ CLAMP @ STACK AND METAL BASE ROOFING SYSTEM AND FLASHING ON RIGID INSULATION ASSEMBLY COMPRESSIBLE FILLER ROD @ VOID - IN ACCORDANCE W/ STACK TEMP LIMITATIONS 1. VERIFY ALL ROOF OPENINGS, SUPPLY UNITS AND EQUIPMENT DIMENSIONS WITH MECHANICAL & ELECTRICAL. T/O ROOF STRUCTURE VAPOR BARRIER SEALED TO ALL PENETRATIONS
