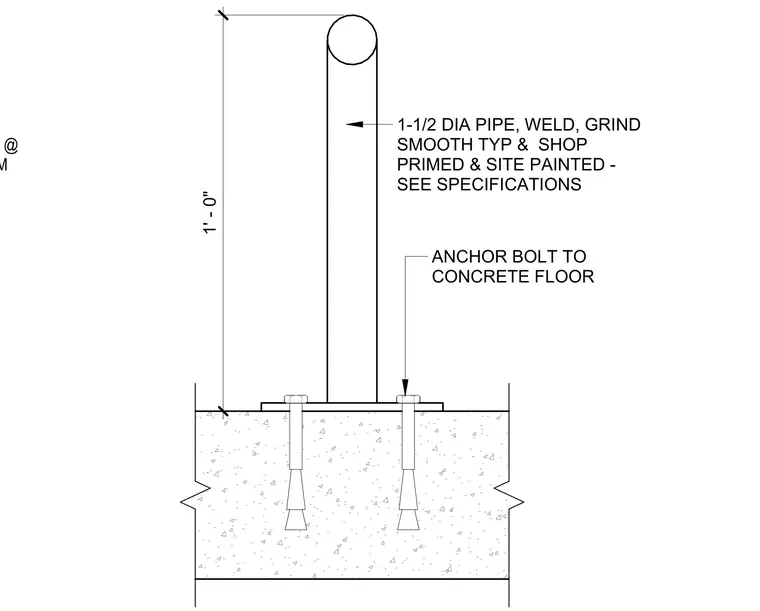

A one-foot-tall cane detection railing consists of a one-and-a-half-inch outside diameter steel pipe rail welded top and bottom and ground smooth. The assembly is shop primed and site painted per specifications. The railing post is secured to a base plate anchored to the concrete floor using anchor bolts embedded into the slab.
1 1/2" O.D. DIA. STEEL PIPE RAIL, 1/2" DIA. STEEL BALUSTER RODS @ 4" OC MAX., WELD TOP & BOTTOM 1' - 0" 1-1/2 DIA PIPE, WELD, GRIND SMOOTH TYP & SHOP PRIMED & SITE PAINTED - SEE SPECIFICATIONS ANCHOR BOLT TO CONCRETE FLOOR
