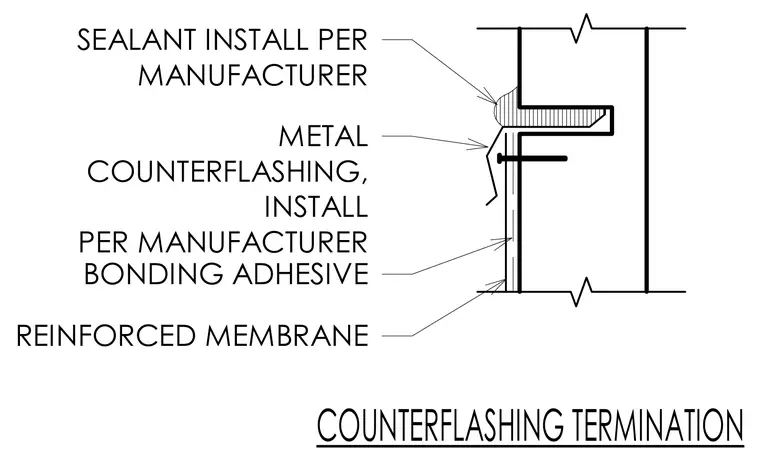

A metal counterflashing profile is anchored against a vertical substrate, secured over a reinforced membrane adhered with bonding adhesive. A bead of sealant is applied at the upper vertical joint per the manufacturer's recommendations.
SEALANT INSTALL PER MANUFACTURER METAL COUNTERFLASHING, INSTALL PER MANUFACTURER BONDING ADHESIVE REINFORCED MEMBRANE COUNTERFLASHING TERMINATION
