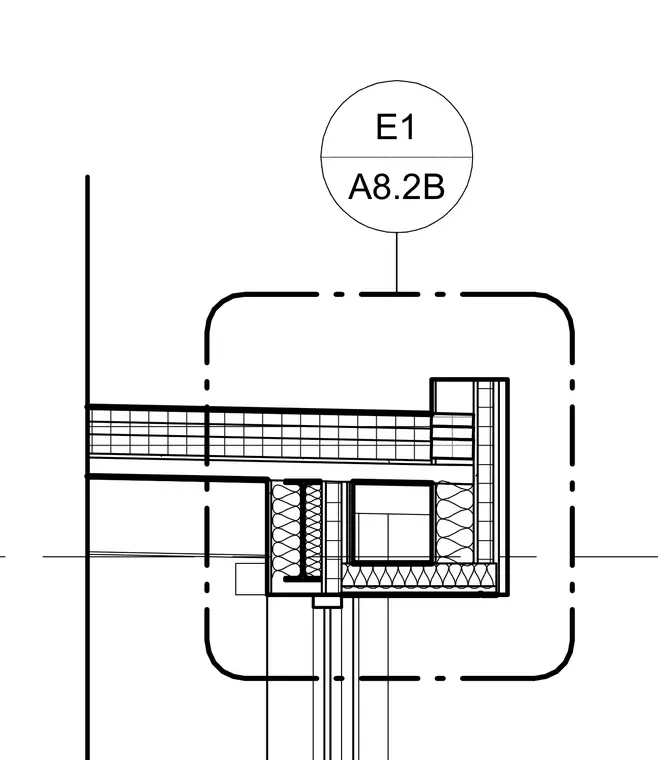

A concrete floor slab is supported by perimeter steel framing and wrapped at the edge with exterior insulation and finishes. A structural steel member ties into the assembly near the window head or glazing interface below.
