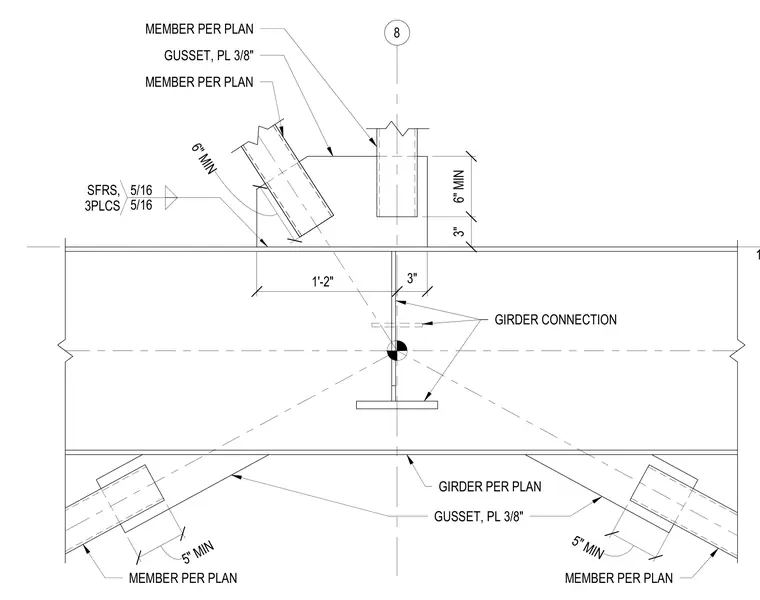

A structural steel connection joins diagonal framing members to a main girder using three-eighths-inch thick gusset plates welded in place. Fillet welds of five-sixteenths-inch size secure the gusset plates to the members per plan requirements, maintaining minimum clearances of three, five, and six inches as indicated. The intersecting axes align at a central work point along the girder span.
109' - 10 3/4" 8 GIRDER PER PLAN 5/16 5/16 SFRS, 3PLCS MEMBER PER PLAN MEMBER PER PLAN GUSSET, PL 3/8" 6" MIN 3" GUSSET, PL 3/8" MEMBER PER PLAN MEMBER PER PLAN 6" MIN 5" MIN 5" MIN 1'-2" 3" GIRDER CONNECTION
