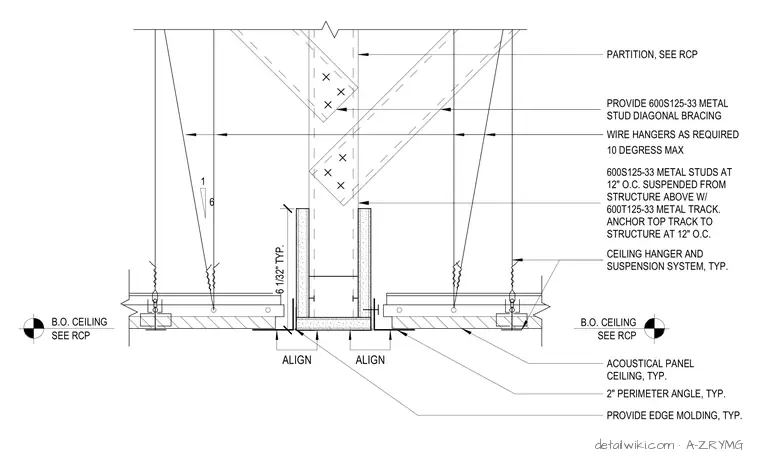

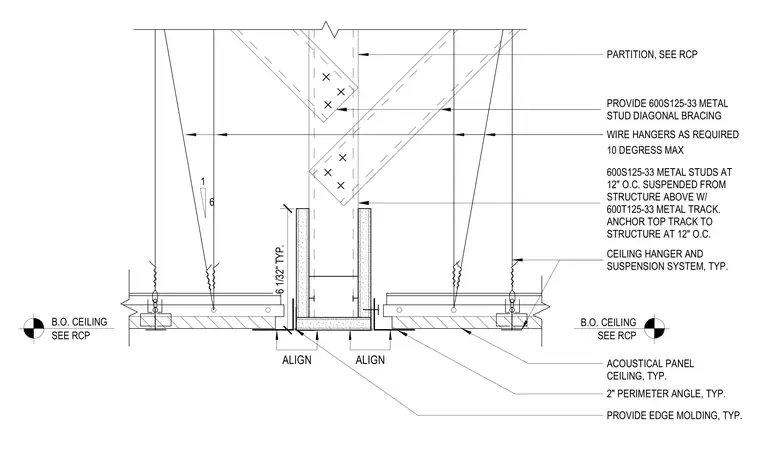

This assembly consists of a partition wall framed with 600S125-33 cold-formed metal studs spaced at 12 inches on center, suspended from the structure above using a 600T125-33 metal track anchored at 12 inches on center. The partition is stabilized with 600S125-33 metal stud diagonal bracing. The adjacent acoustical panel ceiling is supported by a typical ceiling hanger and suspension system, with wire hangers installed at a maximum 10-degree angle. A 2-inch perimeter angle and edge molding are provided at the ceiling-to-partition interface to maintain alignment with the reflected ceiling plan.
Text on the drawing
ACOUSTICAL PANEL CEILING, TYP. CEILING HANGER AND SUSPENSION SYSTEM, TYP. PROVIDE EDGE MOLDING, TYP. ALIGN PARTITION, SEE RCP 6 1/32" TYP. 2" PERIMETER ANGLE, TYP. 600S125-33 METAL STUDS AT 12" O.C. SUSPENDED FROM STRUCTURE ABOVE W/ 600T125-33 METAL TRACK. ANCHOR TOP TRACK TO STRUCTURE AT 12" O.C. PROVIDE 600S125-33 METAL STUD DIAGONAL BRACING B.O. CEILING SEE RCP 1 6 WIRE HANGERS AS REQUIRED 10 DEGRESS MAX ALIGN B.O. CEILING SEE RCP
