Architectural · A-ZRXWG

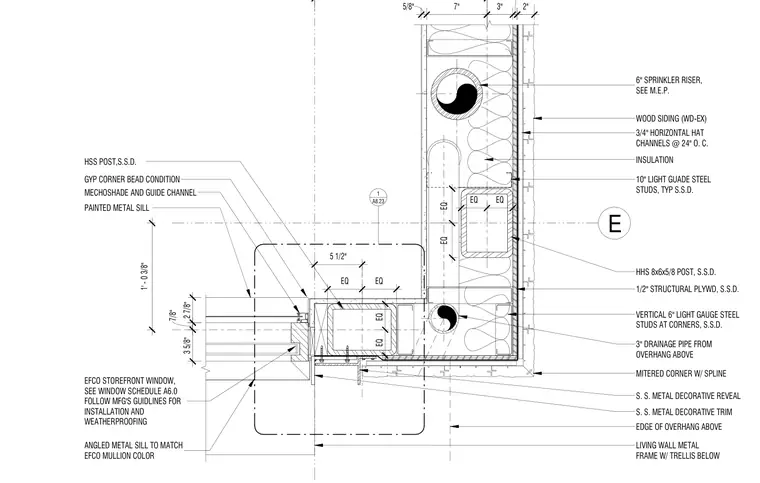

Northeast Corner Plan Detail at HSS Post and Storefront

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Windows Storefronts Stairs Parapets Insulation

Connections

HSS Connection

About this detail

Northeast corner wall assembly and storefront interface. The structural corner is framed with an 8x6x5/8 hollow structural section steel post, supplemented by vertical 6-inch light gauge steel studs and 10-inch light gauge steel studs spaced typical. The exterior envelope features wood siding with mitered corners and a spline, backed by half-inch structural plywood and insulation, alongside a living wall metal frame with a trellis below. Interior finishes include gypsum board with a corner bead condition, a Mechoshade and guide channel, and a painted metal sill. The glazing integration consists of an EFCO storefront window with an angled metal sill matching the mullion color. Additional mechanical integration includes a 6-inch sprinkler riser and a 3-inch drainage pipe running from the overhang above, finished with stainless steel metal decorative reveals and trim.
