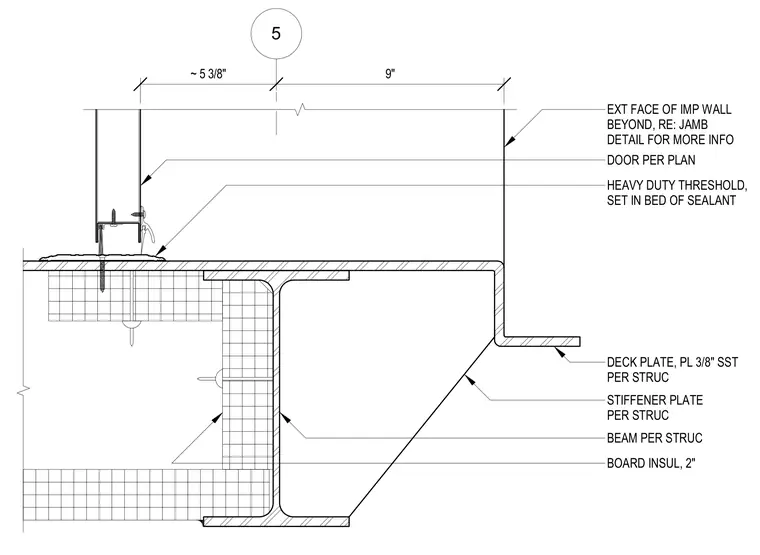

A heavy-duty threshold sits in a bed of sealant directly on a three-eighths-inch stainless steel deck plate, which is supported by a structural steel beam. A stiffener plate is welded to the beam web and underside of the deck plate per structural drawings. Two-inch board insulation clads the beam assembly below. The exterior face of the insulated metal panel wall extends beyond the assembly as indicated per plan.
DECK PLATE, PL 3/8" SST PER STRUC STIFFENER PLATE PER STRUC 5 DOOR PER PLAN HEAVY DUTY THRESHOLD, SET IN BED OF SEALANT BEAM PER STRUC BOARD INSUL, 2" EXT FACE OF IMP WALL BEYOND, RE: JAMB DETAIL FOR MORE INFO ~ 5 3/8" 9"
