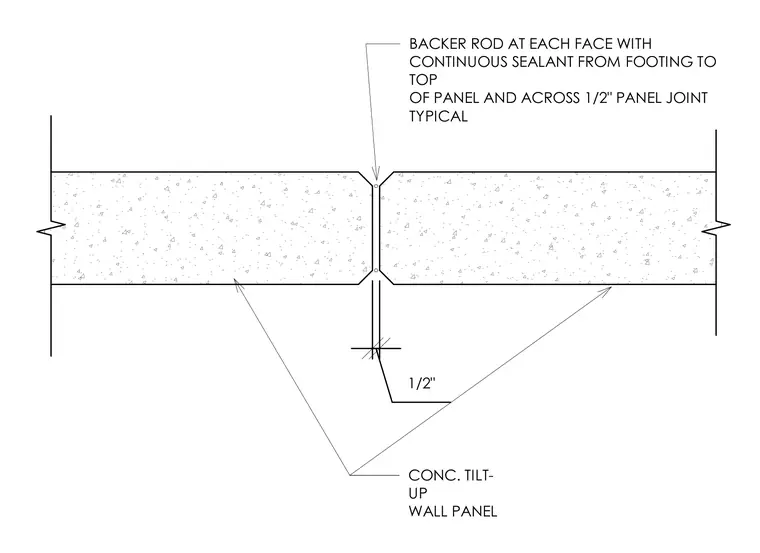

Two adjacent concrete tilt-up wall panels form a half-inch vertical joint spanning from the footing to the top of the panel. A backer rod is placed at each face of the joint with a continuous bead of sealant sealing the gap.
BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 1/2" PANEL JOINT TYPICAL CONC. TILT- UP WALL PANEL 1/2"
