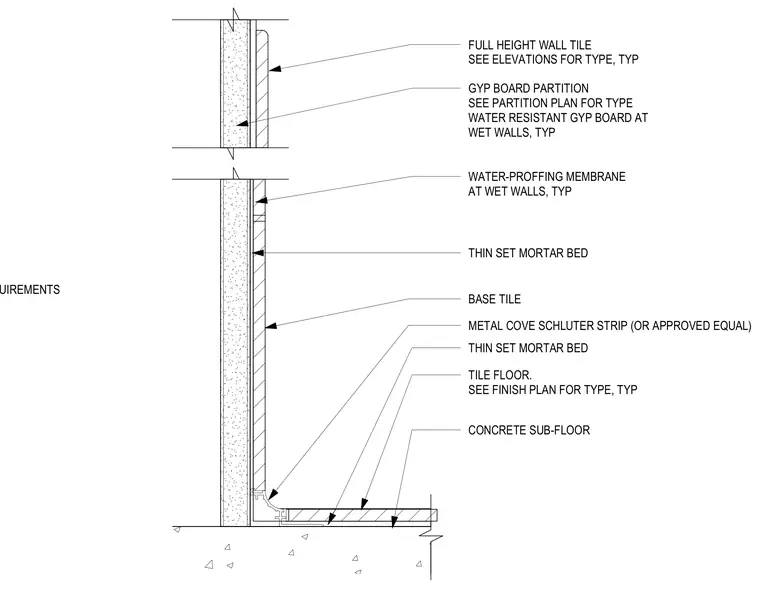

Full-height wall tile adheres with a thin-set mortar bed over water-resistant gypsum board partitions at wet walls, backed by a waterproofing membrane. The base tile meets the tile floor at the concrete sub-floor, transitioning with a metal cove Schluter strip and thin-set mortar bed lock.
GYP BOARD PARTITION SEE PARTITION PLAN FOR TYPE WATER RESISTANT GYP BOARD AT WET WALLS, TYP WATER-PROFFING MEMBRANE AT WET WALLS, TYP FULL HEIGHT WALL TILE SEE ELEVATIONS FOR TYPE, TYP CONCRETE SUB-FLOOR TILE FLOOR. SEE FINISH PLAN FOR TYPE, TYP THIN SET MORTAR BED BASE TILE METAL COVE SCHLUTER STRIP (OR APPROVED EQUAL) THIN SET MORTAR BED LOCK. REFER TO NOTE FOR ADA REQUIREMENTS
