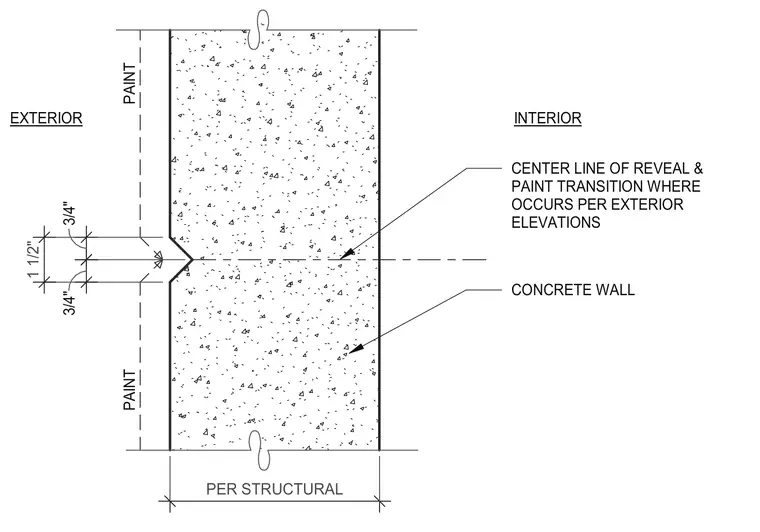

A three-quarter-inch deep V-reveal is formed on the exterior face of a concrete wall, flanked by paint finish transitions on either side. The reveal measures one and one-half inches total in vertical height, centered at three-quarters of an inch from the middle point. Wall thickness is determined per structural engineering documents. The centerline of the reveal marks a paint transition occurring per exterior elevations.
PER STRUCTURAL 1 1/2" INTERIOR CONCRETE WALL EXTERIOR CENTER LINE OF REVEAL & PAINT TRANSITION WHERE OCCURS PER EXTERIOR ELEVATIONS PAINT PAINT 3/4" 3/4"
