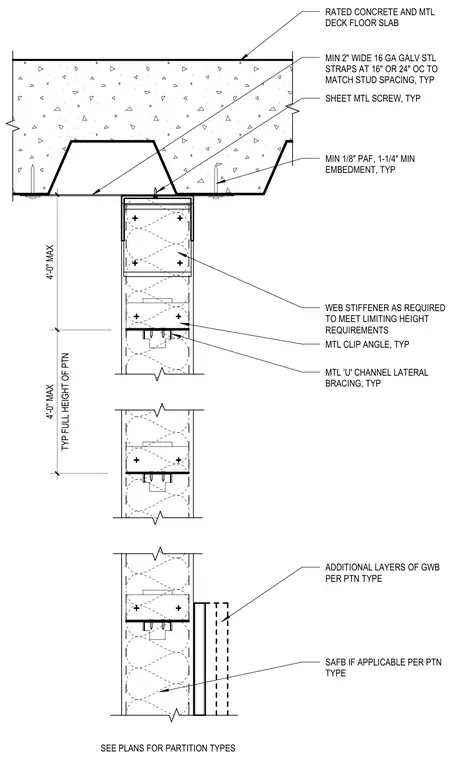

The head of the partition wall connects to a rated concrete and metal deck floor slab using minimum two-inch wide sixteen-gauge galvanized steel straps spaced at sixteen or twenty-four inches on center to match the stud spacing. The top track is secured with minimum one-eighth-inch powder-actuated fasteners having a minimum one-and-one-quarter-inch embedment. Web stiffeners are added as required to meet limiting height requirements, alongside metal U-channel lateral bracing and metal clip angles typical throughout the height of the partition. Additional layers of gypsum wallboard and sound attenuation fire blanket are included per the specific partition type shown on the plans.
RATED CONCRETE AND MTL DECK FLOOR SLAB MIN 2" WIDE 16 GA GALV STL STRAPS AT 16" OR 24" OC TO MATCH STUD SPACING, TYP MIN 1/8" PAF, 1-1/4" MIN EMBEDMENT, TYP SEE PLANS FOR PARTITION TYPES SHEET MTL SCREW, TYP ADDITIONAL LAYERS OF GWB PER PTN TYPE SAFB IF APPLICABLE PER PTN TYPE WEB STIFFENER AS REQUIRED TO MEET LIMITING HEIGHT REQUIREMENTS MTL 'U' CHANNEL LATERAL BRACING, TYP MTL CLIP ANGLE, TYP TYP FULL HEIGHT OF PTN 4'-0" MAX 4'-0" MAX
