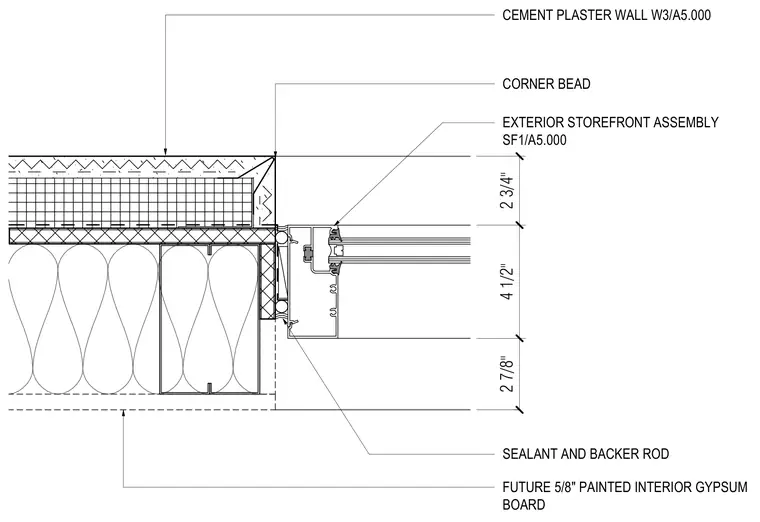

An exterior storefront assembly connects to a cement plaster wall finished with a corner bead at the exterior corner. A joint between the storefront frame and wall assembly is sealed with sealant and a backer rod. Future five-eighths-inch painted interior gypsum board lines the interior side of the wall assembly.
2 7/8" 4 1/2" 2 3/4" CEMENT PLASTER WALL W3/A5.000 EXTERIOR STOREFRONT ASSEMBLY SF1/A5.000 FUTURE 5/8" PAINTED INTERIOR GYPSUM BOARD SEALANT AND BACKER ROD CORNER BEAD
