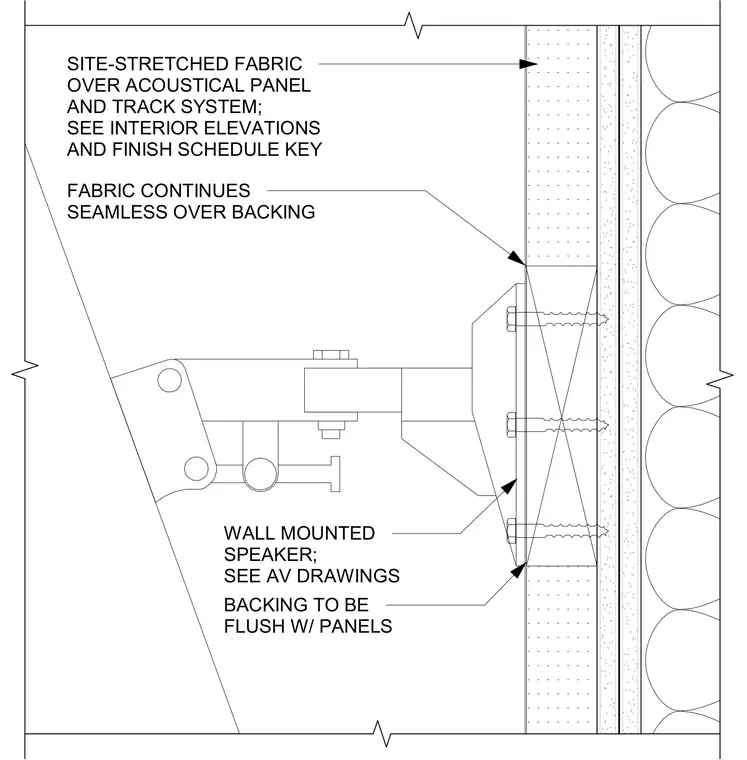

A wall-mounted speaker bracket is anchored through a flush backing layer behind a site-stretched fabric and acoustical panel track system. The fabric continues seamless over the backing, aligning with interior finish requirements.
FABRIC CONTINUES SEAMLESS OVER BACKING BACKING TO BE FLUSH W/ PANELS WALL MOUNTED SPEAKER; SEE AV DRAWINGS SITE-STRETCHED FABRIC OVER ACOUSTICAL PANEL AND TRACK SYSTEM; SEE INTERIOR ELEVATIONS AND FINISH SCHEDULE KEY
