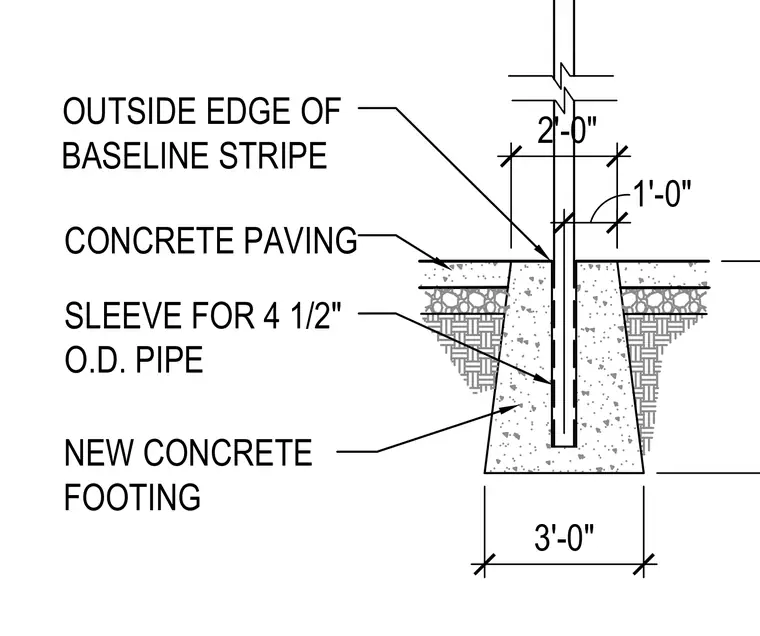

A basketball standard pole with a four and a half inch outer diameter pipe is set into a sleeve embedded within a new concrete footing below concrete paving. The outer edge of the baseline stripe is positioned relative to the post and paving.
1'-0" 3'-0" 2'-0" NEW CONCRETE FOOTING CONCRETE PAVING SLEEVE FOR 4 1/2" O.D. PIPE OUTSIDE EDGE OF BASELINE STRIPE
