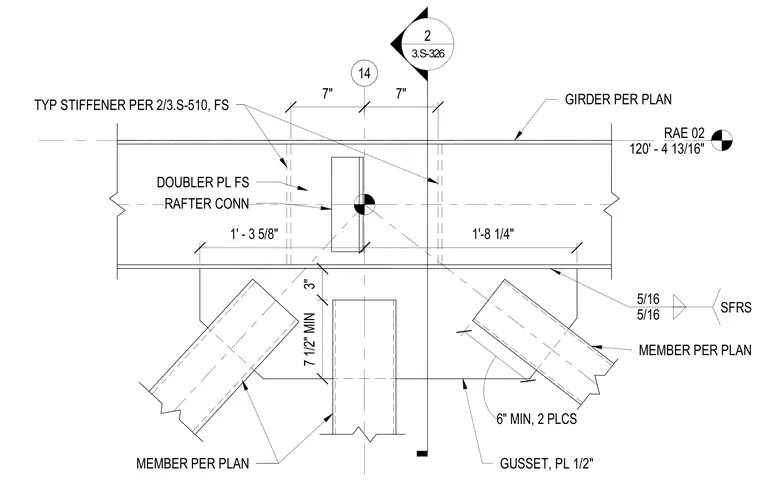

A gusset plate and doubler plate connection frames into a steel girder sized per plan. A half-inch thick gusset plate connects structural members sized per plan with five-sixteenths inch fillet welds. Typical stiffeners are provided per detail 2 on sheet 3.S-510, with a doubler plate furnished at the rafter connection. The assembly forms part of the seismic force-resisting system.
RAE 02 120' - 4 13/16" 14 GIRDER PER PLAN 5/16 5/16 SFRS MEMBER PER PLAN MEMBER PER PLAN GUSSET, PL 1/2" 6" MIN, 2 PLCS 2 3.S-326 7" 7" TYP STIFFENER PER 2/3.S-510, FS DOUBLER PL FS RAFTER CONN 7 1/2" MIN 3" 1'-8 1/4" 1' - 3 5/8"
