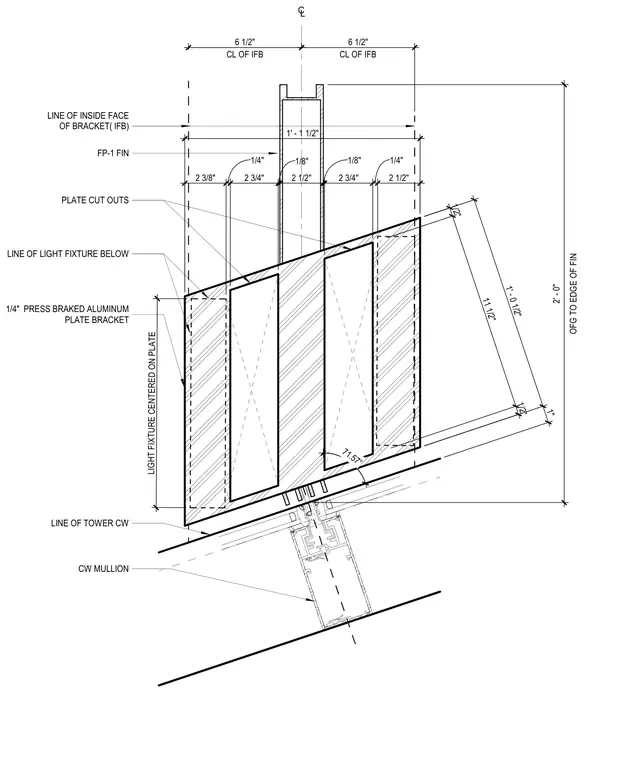

A crown light valance connects at the curtain wall system via a quarter-inch press-braked aluminum plate bracket aligned with the inside face of the bracket and centered on the mullion. The assembly incorporates an FP-1 fin with precise plate cut-outs and dimensions organizing the layout relative to the center line and the light fixture positioned below. The design coordinates the light fixture centered on the plate at a 71.57-degree angle relative to the facade alignment.
LINE OF TOWER CW 1/4" PRESS BRAKED ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) CW MULLION O F G T O E D G E O F F I N 2 ' - 0 " 7 1 . 5 7 ° C L O F I F B 6 1 / 2 " 1 " 1 ' - 0 1 / 2 " 1 / 2 " 1 1 1 / 2 " 1 / 2 " 2 3 / 8 " 1 / 4 " 2 3 / 4 " 1 / 8 " 2 1 / 2 " 1 / 8 " 2 3 / 4 " 1 / 4 " 2 1 / 2 " C L O F I F B 6 1 / 2 " 1 ' - 1 1 / 2 " CL L I G H T F I X T U R E C E N T E R E D O N P L A T E
