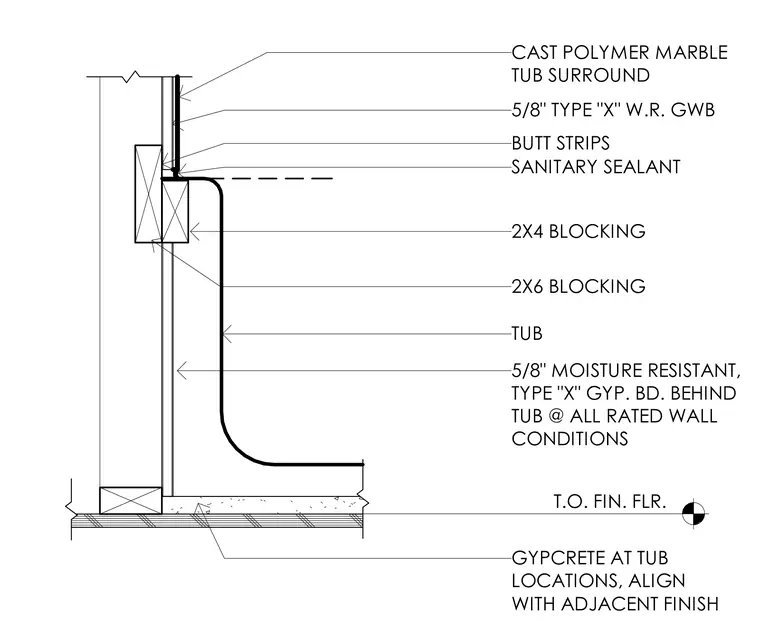

A bathtub installs against a wood-framed wall. The assembly features a cast polymer marble tub surround installed over five-eighths inch moisture-resistant Type X gypsum wallboard with butt strips at joints and sanitary sealant at the tub rim interface. Wood blocking consisting of a two-by-four and two-by-six provides structural support behind the enclosure. An additional layer of five-eighths inch moisture-resistant Type X gypsum board is installed behind the tub at rated wall conditions. Gypcrete is applied at the tub location to align with the top of the adjacent finished floor.
T.O. FIN. FLR. GYPCRETE AT TUB LOCATIONS, ALIGN WITH ADJACENT FINISH 5/8" MOISTURE RESISTANT, TYPE "X" GYP. BD. BEHIND TUB @ ALL RATED WALL CONDITIONS TUB 2X6 BLOCKING 2X4 BLOCKING SANITARY SEALANT BUTT STRIPS CAST POLYMER MARBLE TUB SURROUND 5/8" TYPE "X" W.R. GWB
