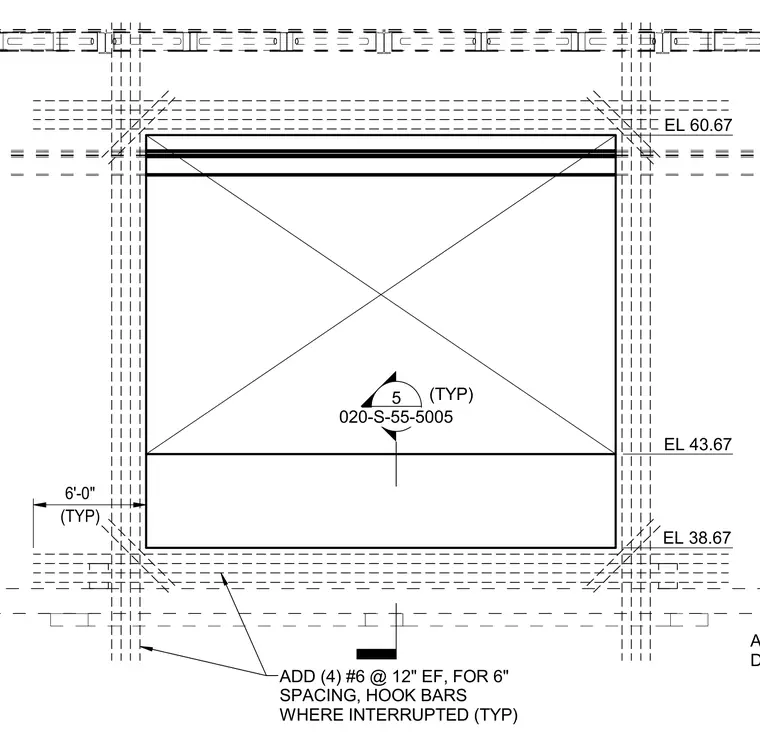

Reinforcing layout details specify additional diagonal bars and hook bars at specified elevations. Additional two number five by five-foot diagonal bars are placed typically, alongside four number six bars at twelve inches each face for six-inch spacing. Hook bars are required where reinforcement is interrupted. Elevation markers denote levels at sixty point six seven, forty-three point six seven, and thirty-eight point six seven.
EL 60.67 EL 43.67 EL 38.67 (TYP) 6'-0" ADD (2) #5 x 5'-0" DIAG BARS (TYP) ADD (4) #6 @ 12" EF, FOR 6" SPACING, HOOK BARS WHERE INTERRUPTED (TYP) 5 020-S-55-5005 (TYP)
