Structural · A-ZPJME

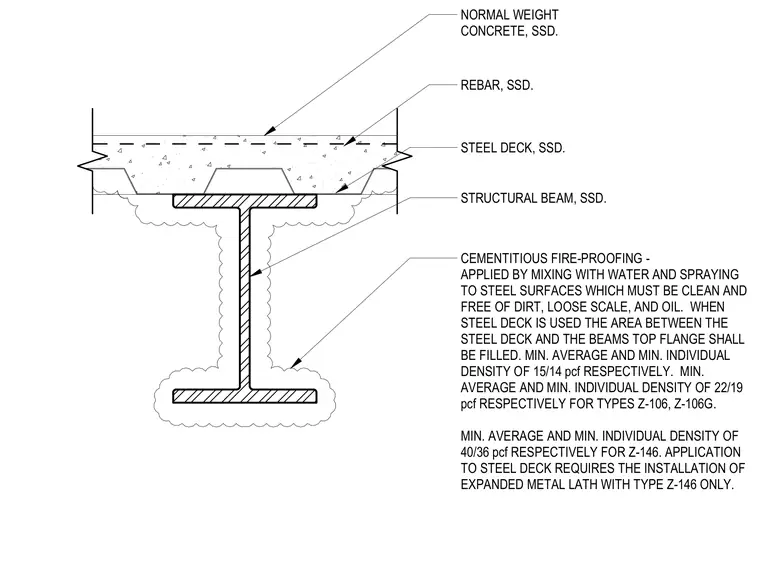

Cementitious Fireproofing at Steel Beam and Concrete Slab

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Beams Ceilings Floors / Slabs Decks Reinforcing

About this detail

A structural steel beam supports a metal steel deck filled with normal weight concrete and reinforced with rebar. The steel surfaces are coated with sprayed cementitious fire-proofing applied by mixing with water to clean, oil-free metal. The space between the steel deck and the beam top flange is completely filled. Type Z-146 fireproofing applications to the steel deck require the installation of expanded metal lath.
