The sign panel consists of an eighteen gauge minimum galvanized steel plate with a porcelain enamel finish featuring a red background and white lettering matching color CE2029. The panel dimensions are one foot eight inches wide by three feet high. Line spacing is specified between 135 percent and 170 percent of the lettering height with a four inch spacing for the main text and typical one inch spacing.

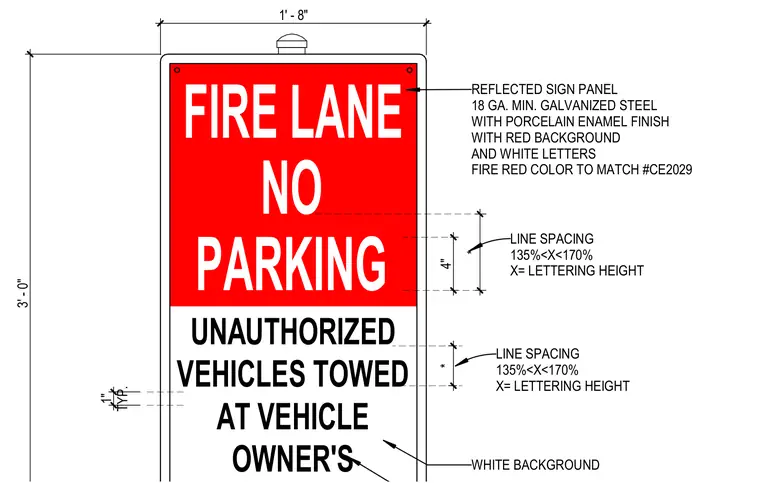

UNAUTHORIZED VEHICLES TOWED AT VEHICLE OWNER'S 1' - 8" 3' - 0" WHITE BACKGROUND REFLECTED SIGN PANEL 18 GA. MIN. GALVANIZED STEEL WITH PORCELAIN ENAMEL FINISH WITH RED BACKGROUND AND WHITE LETTERS FIRE RED COLOR TO MATCH #CE2029 TYP. 1" FIRE LANE NO PARKING 4" * LINE SPACING 135%<X<170% X= LETTERING HEIGHT * LINE SPACING 135%<X<170% X= LETTERING HEIGHT
