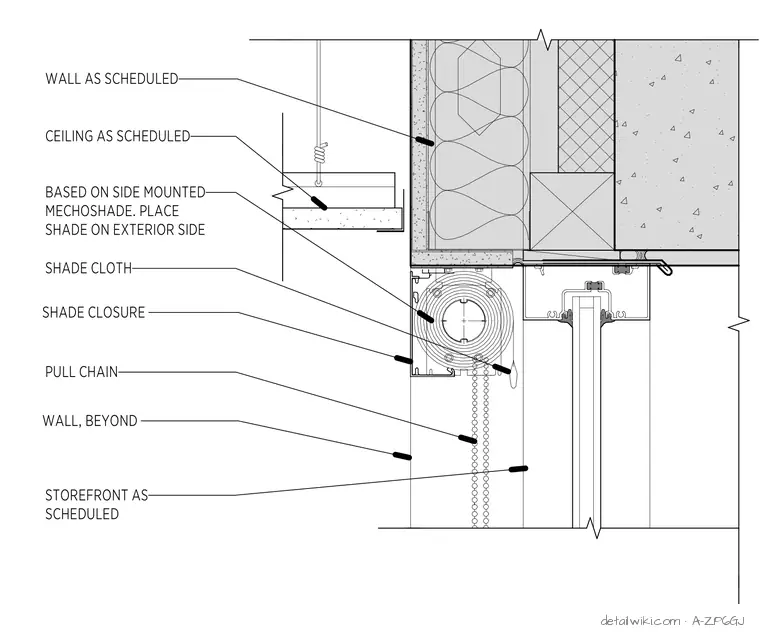

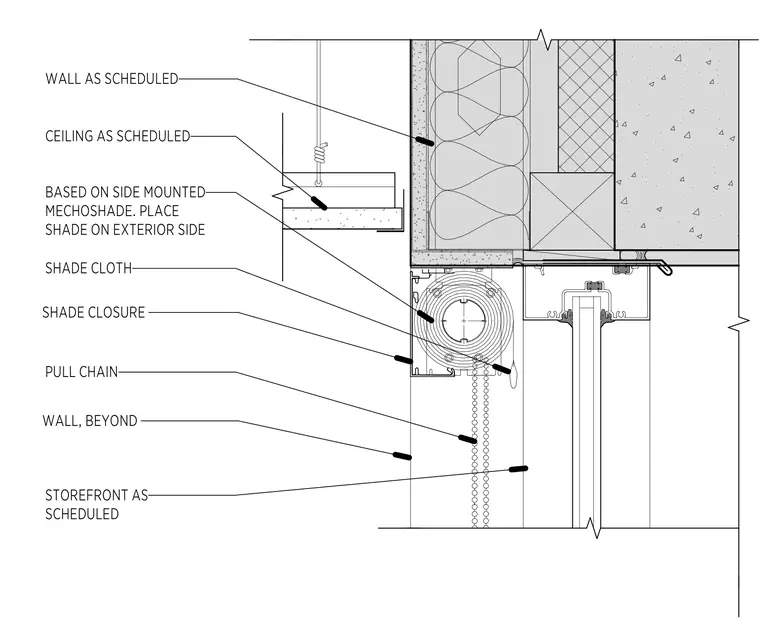

This assembly features a side-mounted roller shade unit installed at the head of a storefront system. The shade mechanism, including the shade cloth and closure, is positioned on the exterior side of the storefront glazing. The unit is located adjacent to a ceiling assembly, which is finished as scheduled. The storefront system is installed per the project schedule, with the shade pull chain hanging vertically for operation.
