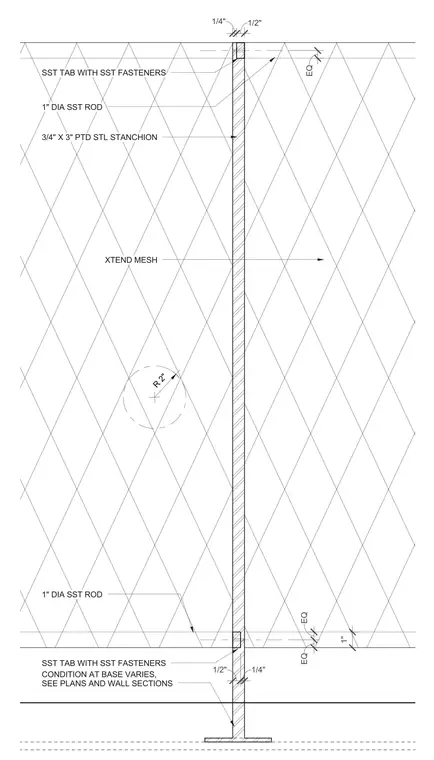

This guardrail assembly features a three-quarter-inch by three-inch painted steel stanchion serving as the vertical support member. One-inch diameter stainless steel rods frame the Xtend mesh infill panel, securing to the assembly with stainless steel tabs and fasteners. The base condition varies and is detailed in plans and wall sections.
CONDITION AT BASE VARIES, SEE PLANS AND WALL SECTIONS SST TAB WITH SST FASTENERS SST TAB WITH SST FASTENERS 3/4" X 3" PTD STL STANCHION 1/2" 1/4" 1/4" 1/2" 1" DIA SST ROD 1" DIA SST ROD 1" EQ EQ EQ XTEND MESH R 2"
