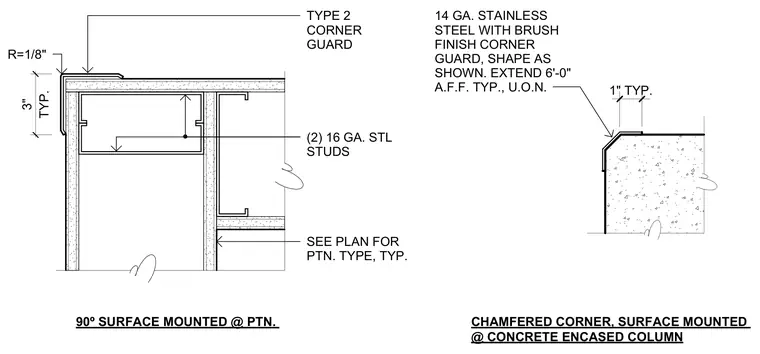

A fourteen gauge stainless steel corner guard with a brush finish and one-eighth inch radius is surface mounted at ninety degrees. The guard features three-inch typical flanges extending six feet above finished floor unless otherwise noted. It is installed over two sixteen gauge steel studs at partitions and directly over concrete encased columns as sized per plan.
SEE PLAN FOR PTN. TYPE, TYP. TYP. 3" R=1/8" TYPE 2 CORNER GUARD (2) 16 GA. STL STUDS 90º SURFACE MOUNTED @ PTN. CHAMFERED CORNER, SURFACE MOUNTED @ CONCRETE ENCASED COLUMN 14 GA. STAINLESS STEEL WITH BRUSH FINISH CORNER GUARD, SHAPE AS SHOWN. EXTEND 6'-0" A.F.F. TYP., U.O.N. 1" TYP.
