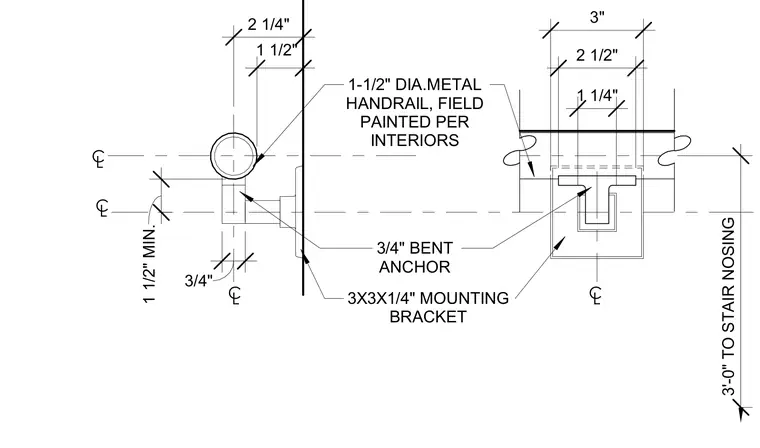

A one-and-a-half-inch diameter metal handrail is secured with a field-painted finish per interiors specifications. The handrail connects to a three-inch by three-inch by quarter-inch mounting bracket. A three-quarter-inch bent anchor embeds into the wall construction to support the assembly.
2 1/4" 1 1/2" 1 1/2" MIN. 3/4" 2 1/2" 1 1/4" 3'-0" TO STAIR NOSING 3" C L C L C L C L 1-1/2" DIA.METAL HANDRAIL, FIELD PAINTED PER INTERIORS 3/4" BENT ANCHOR 3X3X1/4" MOUNTING BRACKET
