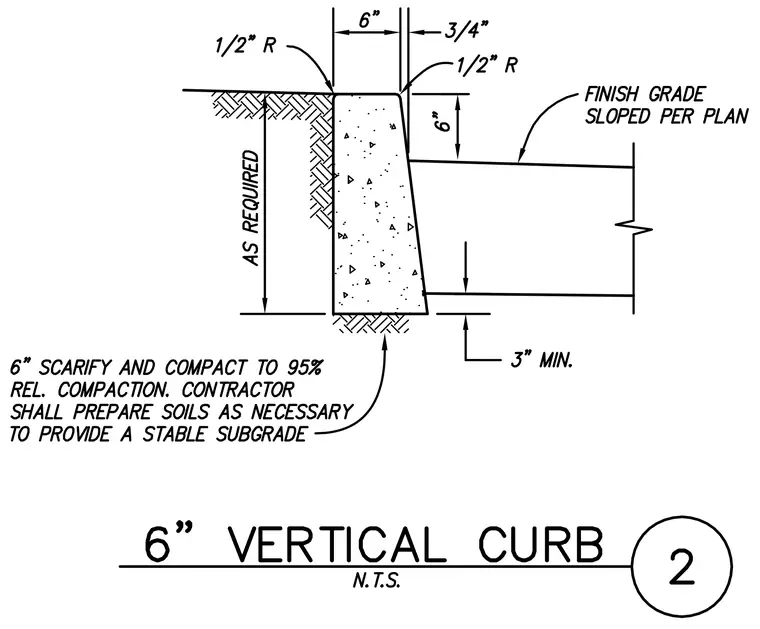

A six-inch vertical concrete curb with a half-inch radius at the top edges features a six-inch top width and a three-inch minimum dimension at the base. Finish grade is sloped per plan with a three-quarter-inch offset dimension at the top face. Subgrade preparation requires six inches of scarification and compaction to ninety-five percent relative compaction on a stable subgrade.
