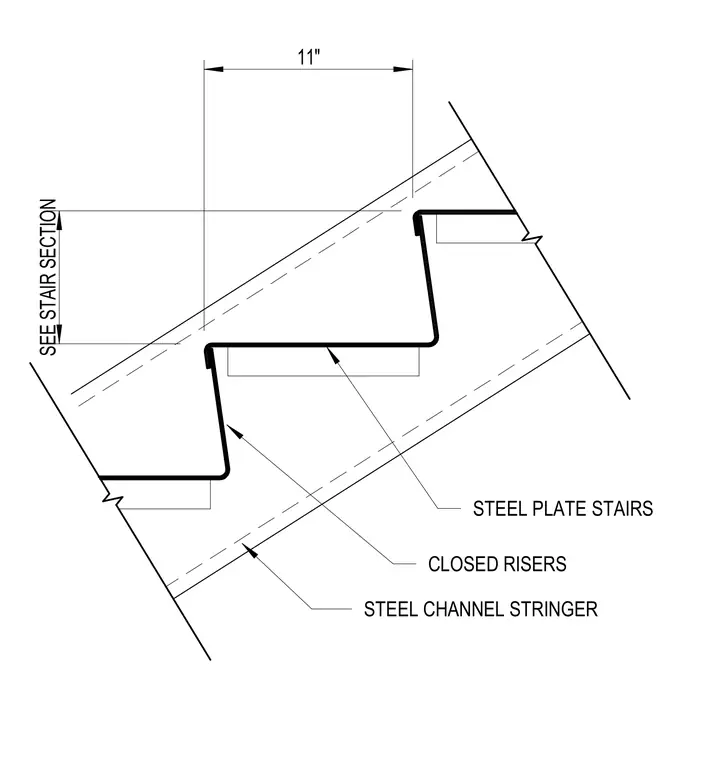

The drawing illustrates a stair tread and riser assembly constructed from formed steel plates. The assembly features an 11-inch tread dimension and is integrated with closed risers, supported continuously along the inclined path by a steel channel stringer. Callouts indicate the steel plate stairs, closed risers, and steel channel stringers.
