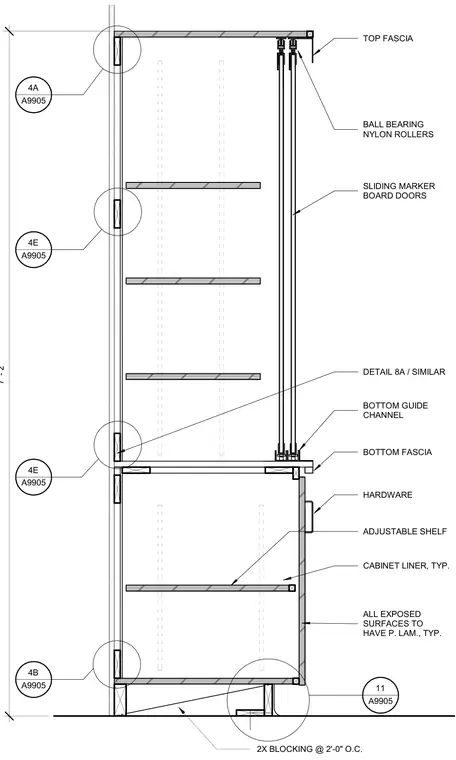

This elevation section details a custom teaching wall casework unit with sliding marker board doors mounted on ball bearing nylon rollers and top fascias. The lower storage base includes adjustable shelving and a cabinet liner finished with plastic laminate on all exposed surfaces. Two-by wood blocking is spaced at two feet on center for structural support, anchored with designated hardware. The assembly incorporates top and bottom guide channels for the sliding marker boards along with lower fascia trim.
DETAIL 8A / SIMILAR SLIDING MARKER BOARD DOORS BOTTOM GUIDE CHANNEL BOTTOM FASCIA TOP FASCIA BALL BEARING NYLON ROLLERS ADJUSTABLE SHELF CABINET LINER, TYP. ALL EXPOSED SURFACES TO HAVE P. LAM., TYP. HARDWARE 7' - 2" 2X BLOCKING @ 2'-0" O.C. 4A A9905 4E A9905 4E A9905 4B A9905 11 A9905
