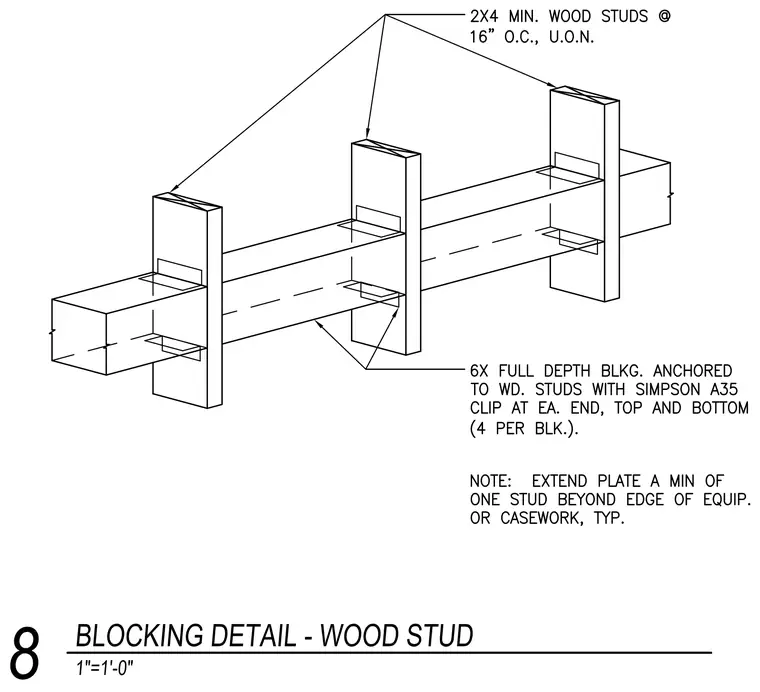

Two-by-four minimum wood studs are spaced at sixteen inches on center, unless noted otherwise. Six-inch full-depth blocking is anchored to the wood studs with Simpson A35 clips at each end, top and bottom, using four clips per block. The blocking plate extends a minimum of one stud beyond the edge of equipment or casework typically.
