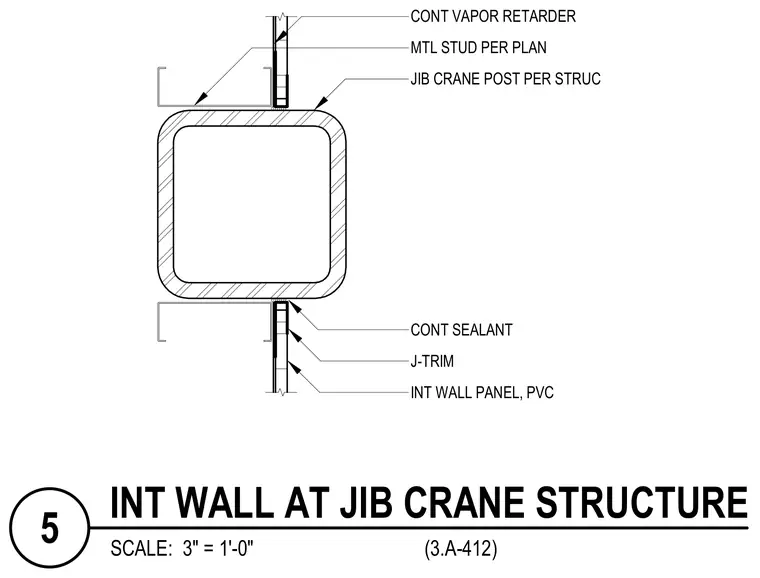

An interior metal stud wall assembly terminates against a structural steel jib crane post sized per structural drawings. Continuous vapor retarder spans behind the partition framing. Continuous PVC J-trim finishes the interior wall panel edge at the structural post, sealed with continuous elastomeric sealant.
MTL STUD PER PLAN CONT VAPOR RETARDER JIB CRANE POST PER STRUC INT WALL PANEL, PVC J-TRIM CONT SEALANT SCALE: 3" = 1'-0" (3.A-412) 5 INT WALL AT JIB CRANE STRUCTURE
