Acoustical Plaster Access Panel

Materials

Gypsum / Drywall EIFS / Plaster / Stucco

Elements

About this detail

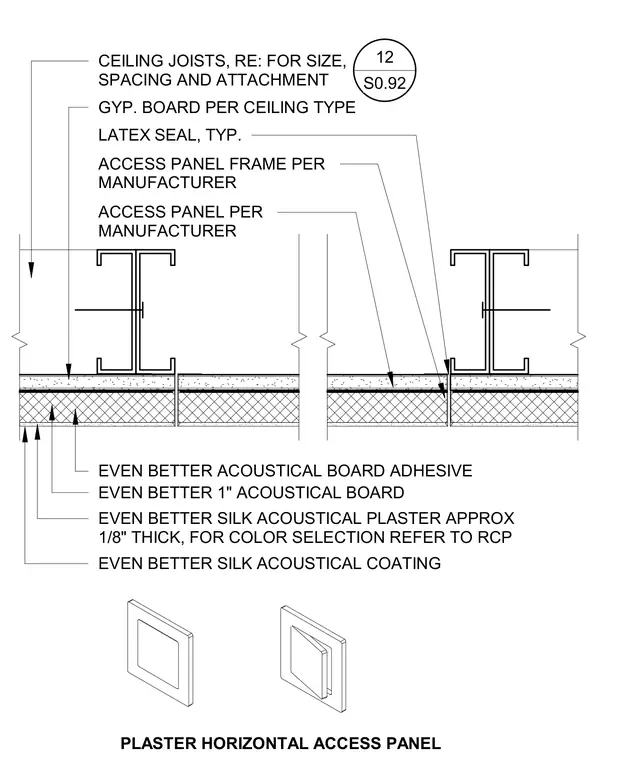

The assembly features a horizontal access panel set within a plaster ceiling supported by framing joists. Gypsum board is installed per the ceiling type, with ceiling joist size and attachment coordinated per structural drawings. An access panel frame per manufacturer is integrated with typical latex sealant joints. The finish layers consist of one-inch acoustical board secured with adhesive, finished with approximately one-eighth-inch thick silk acoustical plaster and silk acoustical coating.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
